Rendering API

The Rendering API turns a Bannx page (from a template) into an image. Use a page ID with GET or POST: by default the page is loaded from the publish cache; set draft: true on POST to load from the database (unpublished).

Endpoints

GET /api/render/:pageId

Render a page by ID using query parameters. By default loads from the publish cache; set draft=true to load from the database (same as POST).

Authentication depends on the template setting Require token for GET render (editor → Settings → Template):

• On (default): Send Authorization: Bearer <API key> or add the space GET render URL secret as query param gt (create it under Settings → Space → Developers). The API key must belong to the same space as the template. Useful for <img src="..."> without request headers.
• Off: No auth; anyone with the page ID can call GET for that template’s pages.

Query parameters:

Response: Binary image/PDF, or application/json with file metadata when output is not binary.

Example:

# PNG (default)
curl -H "Authorization: Bearer YOUR_TOKEN" \
  "https://your-app.bannx.app/api/render/PAGE_ID" -o out.png

# WebP with variable overrides (JSON)
curl -H "Authorization: Bearer YOUR_TOKEN" \
  "https://your-app.bannx.app/api/render/PAGE_ID?format=webp&tweaks=%7B%22title%22%3A%22Hello%22%7D" -o out.webp

# SVG with query tweaks
curl -H "Authorization: Bearer YOUR_TOKEN" \
  "https://your-app.bannx.app/api/render/PAGE_ID?format=svg&tweak:title=Hello" -o out.svg

# Retina PNG at 4× scale
curl -H "Authorization: Bearer YOUR_TOKEN" \
  "https://your-app.bannx.app/api/render/PAGE_ID?scale=4" -o [email protected]

# Same request using GET URL secret (no Bearer)
curl "https://your-app.bannx.app/api/render/PAGE_ID?format=png&gt=YOUR_GET_SECRET" -o out.png

POST /api/render

Render using a page ID. Loads the page and template from the publish cache by default, or from the database when draft: true (e.g. before publish).

Authentication: Required (Authorization: Bearer <token>). Rate limit: 60 requests/minute per token.

Request body (JSON):

Response (default): application/json with pageId, templateId, draft, format, renderType, mimeType, width, height, emojiType, renderMs, uploadMs, and file (id, url, sizeBytes). The render is uploaded to temporary storage for your space; use file.url to display or download the image.

Response (with "output": "binary" or "binary": true in the body): Raw body — image types as GET, or application/pdf when format is pdf.

Example (JSON default — save response and inspect file.url):

curl -X POST -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"pageId":"PAGE_ID","format":"webp","tweaks":{"title":"Hello"}}' \
  "https://your-app.bannx.app/api/render" -o response.json

Example (raw image body):

curl -X POST -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"pageId":"PAGE_ID","format":"webp","output":"binary","tweaks":{"title":"Hello"}}' \
  "https://your-app.bannx.app/api/render" -o out.webp

Example (draft / unpublished page):

{
  "pageId": "PAGE_ID",
  "draft": true,
  "format": "png",
  "tweaks": { "title": "My Banner" }
}

Example (brand overrides — same design, different brand):

{
  "pageId": "PAGE_ID",
  "format": "png",
  "brandTweaks": {
    "colors.primary": "#7c3aed",
    "colors.secondary": "#0f0a1e",
    "logos.logo": "https://cdn.example.com/acme-logo.svg"
  }
}

Example (single-page PDF):

curl -X POST -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"pageId":"PAGE_ID","format":"pdf","output":"binary"}' \
  "https://your-app.bannx.app/api/render" -o out.pdf

Example (merged multi-page PDF):

{
  "pageIds": ["PAGE_A", "PAGE_B"],
  "format": "pdf",
  "output": "binary",
  "tweaksPerPage": [{ "title": "Page A" }, { "title": "Page B" }]
}

For long, content-driven PDFs where the number of pages depends on the data (invoices, catalogs, reports), see Auto-pagination.

HTML5 ads (format: "html5")

Export a page as a self-contained HTML5 display-ad bundle — the ZIP that Google Ads, Display & Video 360 and most other ad platforms accept as an uploaded creative.

curl -X POST -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"pageId":"PAGE_ID","format":"html5","output":"binary","clickTag":"https://example.com/offer"}' \
  "https://your-app.bannx.app/api/render" -o ad.zip

The bundle contains index.html at its root, a styles.css, and an assets/ folder holding every image and font the ad uses. It is built to the rules ad platforms validate against:

• <meta name="ad.size"> declares the creative's pixel size, taken from the page.
• clickTag is a global variable and the click is routed through it. Platforms overwrite it at serve time to attach click tracking, so the value you pass is the local-preview default rather than the final destination.
• Nothing loads from the network. Images and webfonts are fetched at export time and rewritten to relative paths, because an ad that requests an external URL at serve time is rejected.

One ad bundle is one creative size, so html5 takes a single pageId. For a campaign covering several sizes, keep one page per size and export each — that is how platforms expect them uploaded.

Size matters: Google Ads rejects bundles over 150 KB (max 40 files). The export keeps its own weight down — it subsets webfonts to the weights the page actually uses and stores inline images as files rather than base64 — but a heavy photo will still blow the budget. The response reports where you stand:

• With output: "binary", the verdict rides on headers: X-Ad-Compliant (1/0), X-Ad-Size, and X-Ad-Errors / X-Ad-Warnings (URL-encoded, |-separated).
• Otherwise the JSON response carries an ad object with compliant, errors, warnings, totalBytes and fileCount.

An error means a platform will reject the bundle (typically an asset that could not be fetched, so the ad still points at a URL). A warning is yours to judge — over 150 KB, or an asset too large to bundle.

In the editor, choose HTML5 ad (ZIP) in the Automate panel's format selector, set the landing page, and download.

Code-to-image (POST /api/code-to-image)

Separate endpoint to render code snippets as images (syntax highlighting). No API token required for this endpoint.

Request body:

Response: application/json with dataUrl (the rendered image as a data URL), format, and mimeType.

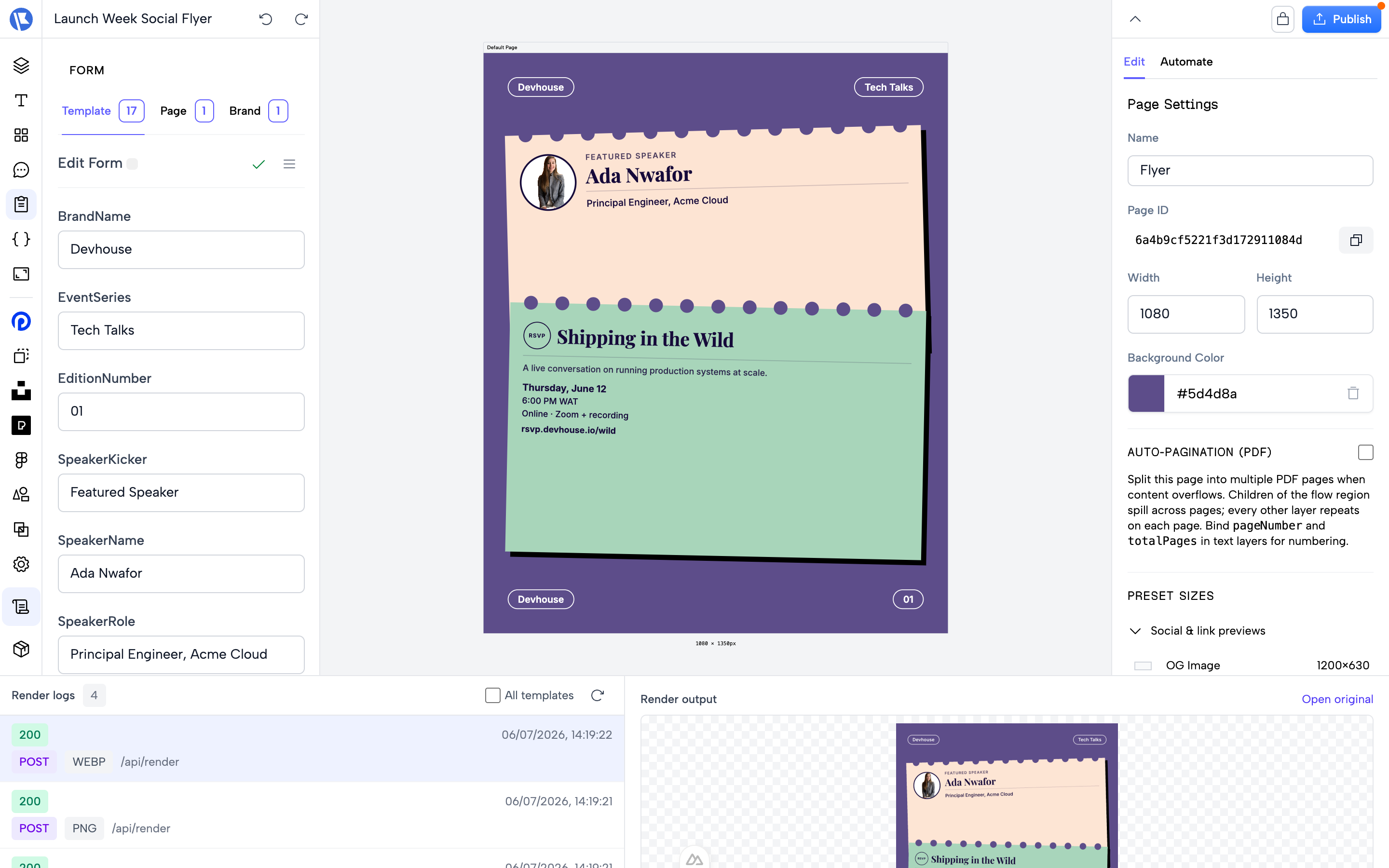

Render logs

Every render is logged for your space. In the editor, open the Render Logs panel to inspect recent requests (status, timings, format, and the requesting token).

Programmatically, a logged-in dashboard session can list logs via GET /api/renders/logs?templateId=…&page=…&perPage=… — useful for debugging integrations. This endpoint uses session authentication (it is not callable with an API key).

Errors

Webhooks

Render requests can trigger webhooks (e.g. upload result, update log). See Webhooks for configuration and behavior.
